STACYC 90° Internal Gearbox – 12eDrive & 16eDrive

Reliable transmission. Restored performance. Essential component.

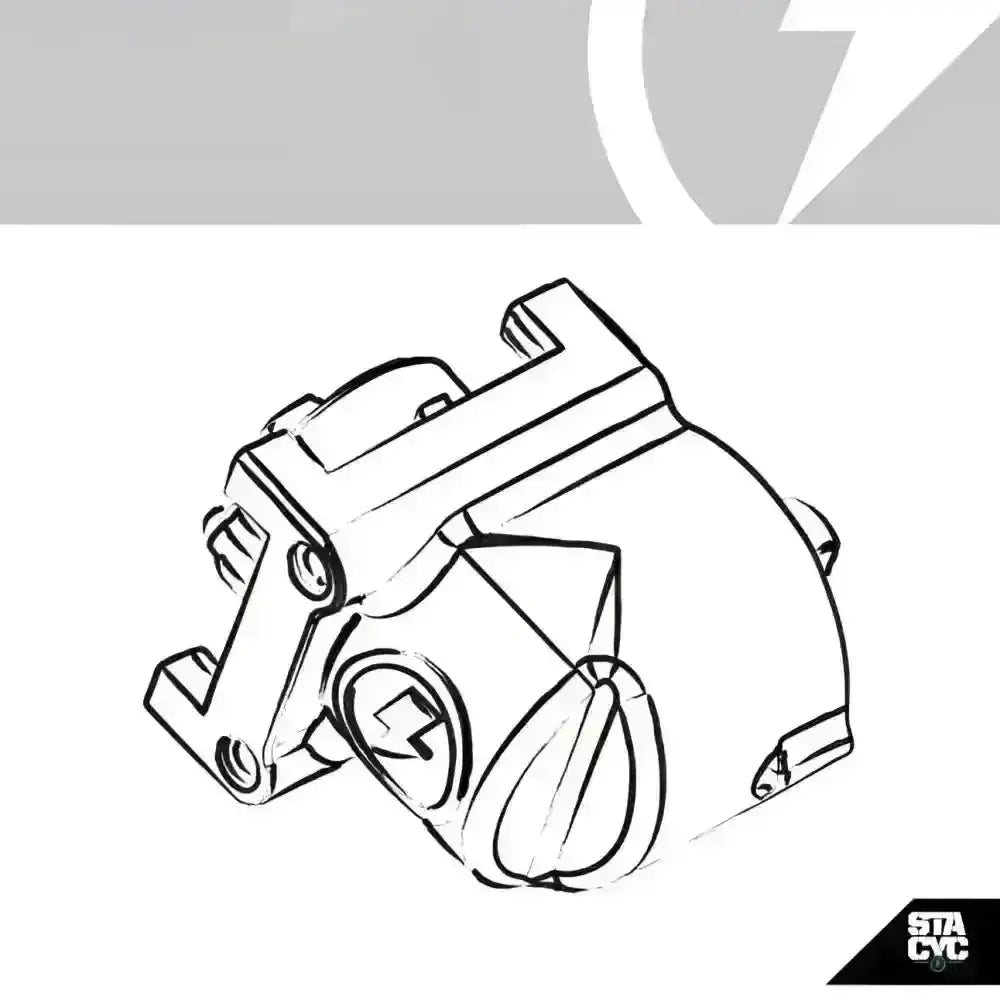

90° internal gearbox replacement designed for STACYC 12eDrive and 16eDrive models.

“The motor was spinning, but the wheel wasn’t following. You could hear a stripping or dry mechanical noise.”
Typical experience. Internal gearbox wear can cause loss of drive and abnormal noise.

Why replace the STACYC 90° gearbox

• Efficient power transfer: restores proper drivetrain function
• Performance restored: eliminates losses caused by internal wear
• Increased reliability: critical drivetrain component
• Direct replacement: designed for proper fit and function

Compatibility

• ✔️ Compatible with STACYC 12eDrive
• ✔️ Compatible with STACYC 16eDrive
• ❌ Not compatible with 16eDrive Elite / 18eDrive / 20eDrive / 16HDrive / 20HDrive

Key features

• 90° internal gearbox STACYC
• Designed for 12eDrive and 16eDrive platforms
• 90° power transfer from motor to chain
• Available version: Heavy Duty

Usage & installation

• Replacement for worn or damaged gearbox
• Restores drivetrain power transfer
• Requires motor system disassembly

Important: this replacement requires basic mechanical skills. Nothing overly complex, but proper mechanical understanding is required.

Gearbox bolts may be secured with threadlocker (visible white residue). If you see this, try loosening normally first. If it does not cooperate, apply heat with a heat gun to soften the compound and prevent breaking bolts.

Broken bolts inside the gearbox are not covered under warranty.

It is essential to leave a slight chain slack during reassembly. A chain that is too tight can cause damage during impacts (jumps, compression), as the bike flexes under load.

In these conditions, the 90° gearbox absorbs the stress and may fail. Always adjust chain tension properly to protect drivetrain components.

Product note: the original standard version is discontinued. Only the Heavy Duty version is now available. The standard version is only included with the STACYC motor and controller upgrade kit.

Warranty

🛡️ Official STACYC manufacturer warranty:
This product is covered against manufacturing defects for a period of 30 days, in accordance with the manufacturer’s policy.
